High Frequency AC / DC Current Probe CP Series
CP Series
Max. Bandwidth: 100MHz
Max. Measurable Current: 300Arms
Accuracy (typical): 1%
Max. Conductor Diameter: 5mm/20mm
Interface: BNC
Max. Measurable Current: 300Arms
Accuracy (typical): 1%
Max. Conductor Diameter: 5mm/20mm
Interface: BNC
Quantity
Micsig CP Series features 1% accuracy and 1 mA resolution for precise waveform capture and reliable measurements.A dual-range design covers both small-signal detection and high-current transient analysis, helping engineers optimize their designs. Featuring 5 mm and 20 mm jaw options, one-button degauss/auto-zero, and a built-in overcurrent alarm, the CP Series ensures easy operation and safety. The standard BNC interface is compatible with most oscilloscope brands, making it ideal for new energy and industrial electronics testing.

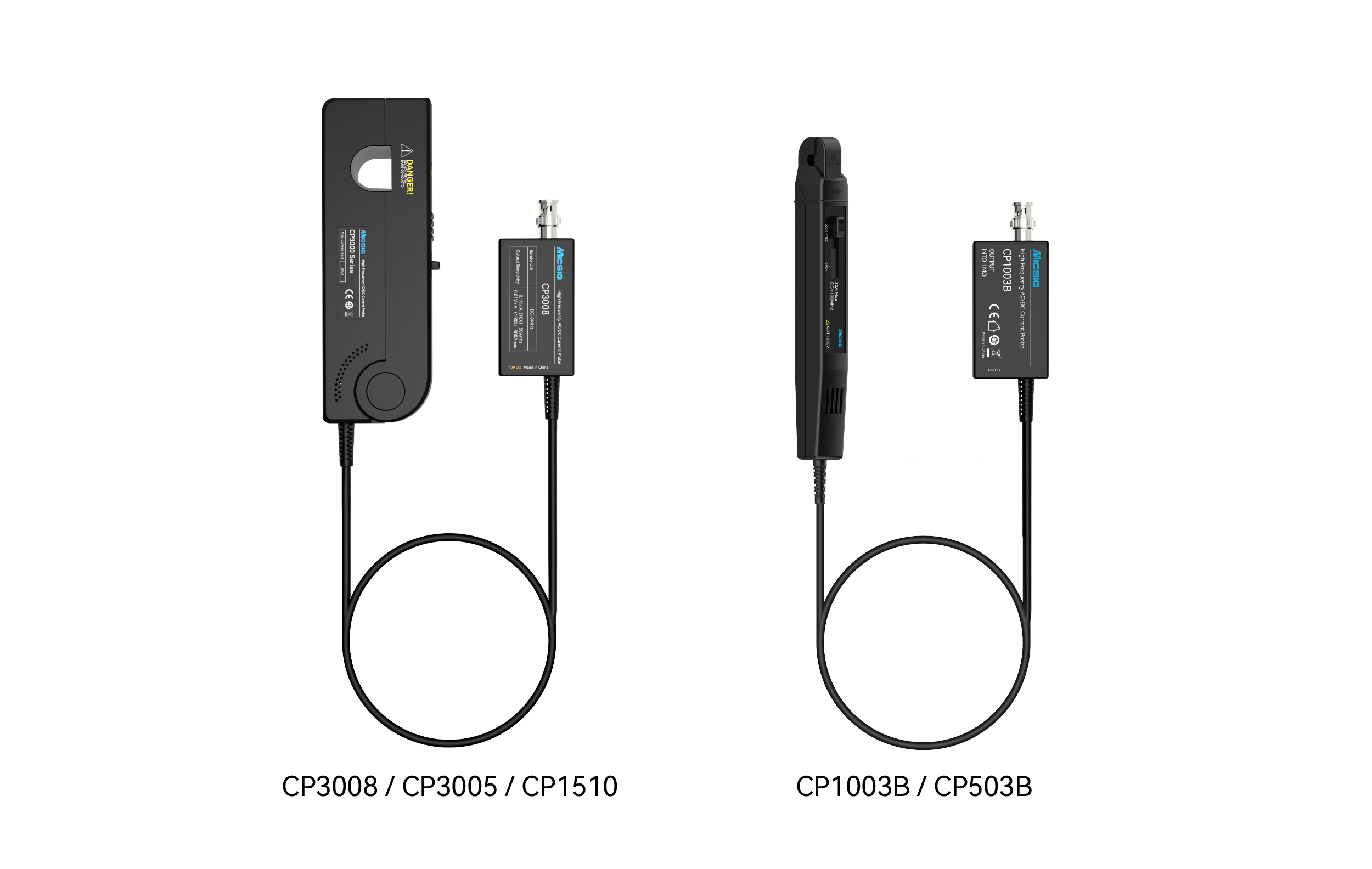

Excellent Design

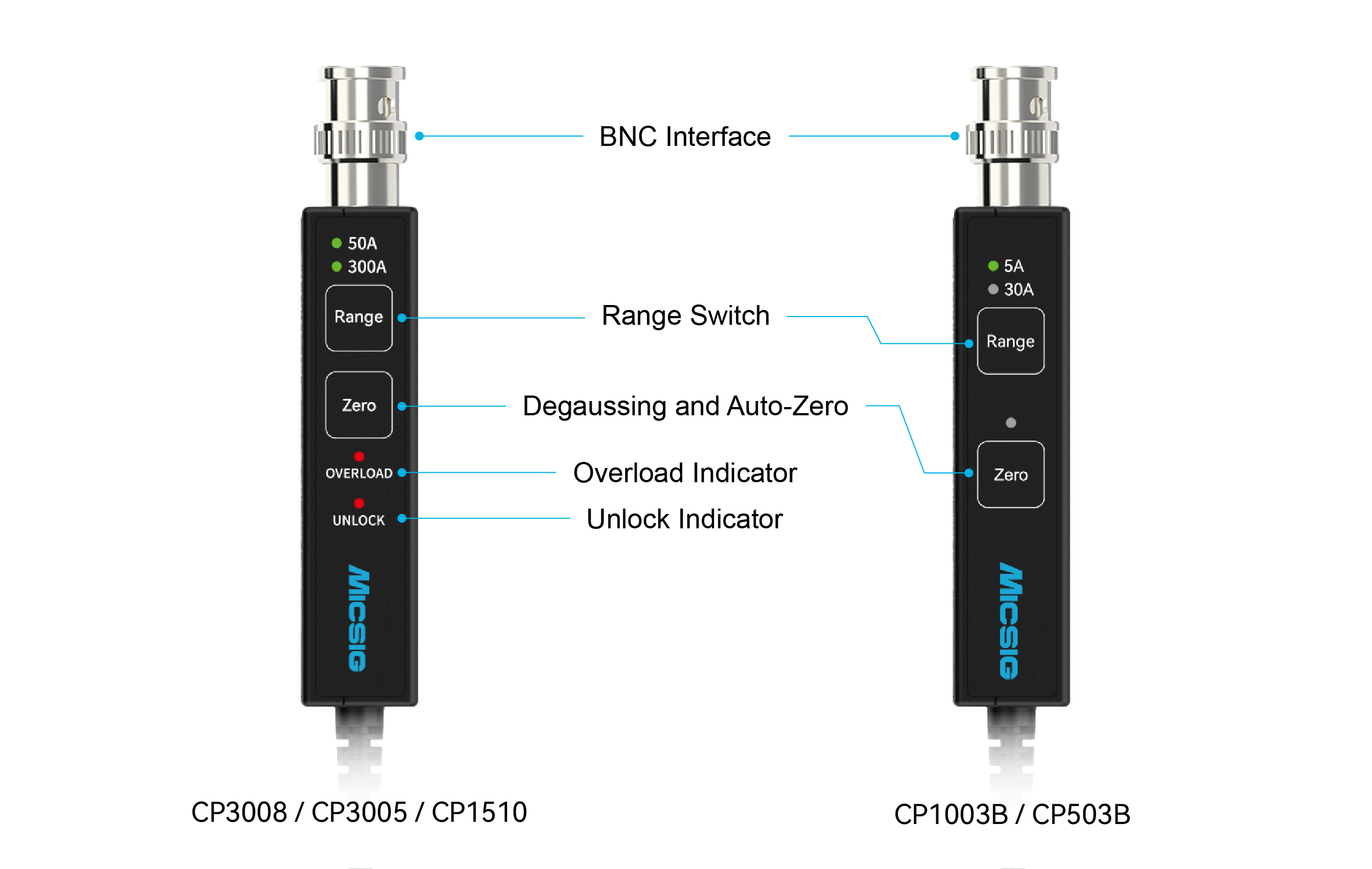

Auto Degaussing and Zero: effortless, efficient, and precise.
Overcurrent alarm for safe range switching and reliable protection.
Standard BNC interface compatible with most oscilloscope brands.
HF Current Signal Measurements

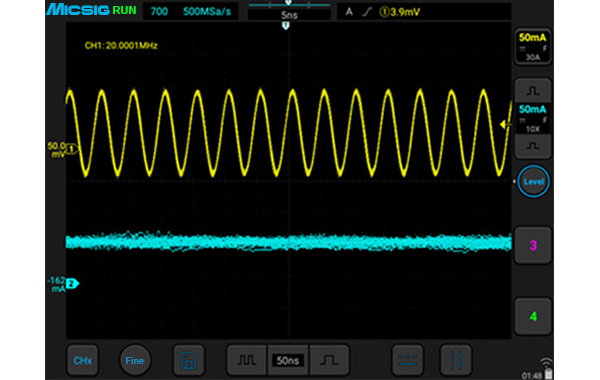

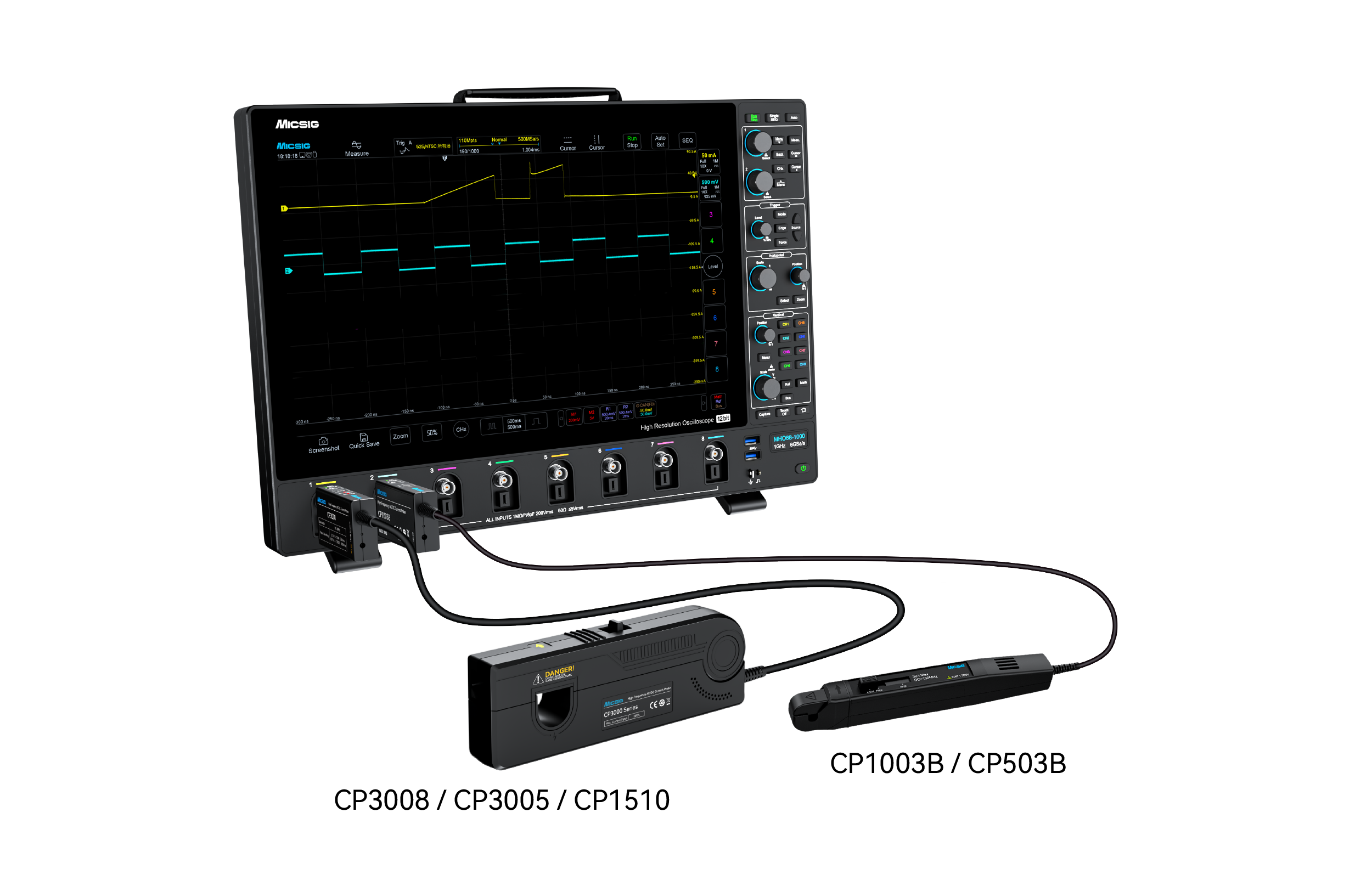

Accurate measurement capability on high-frequency signals >20MHz. (CH1 Yellow, measured with the CP1003B).
Same signal completely distorted when measured by low-frequency probe. (CH2 Blue).
Easy to handle hign current measuremnets
It supports the measurement of large currents up to 300Arms and accurately captures AC signals.

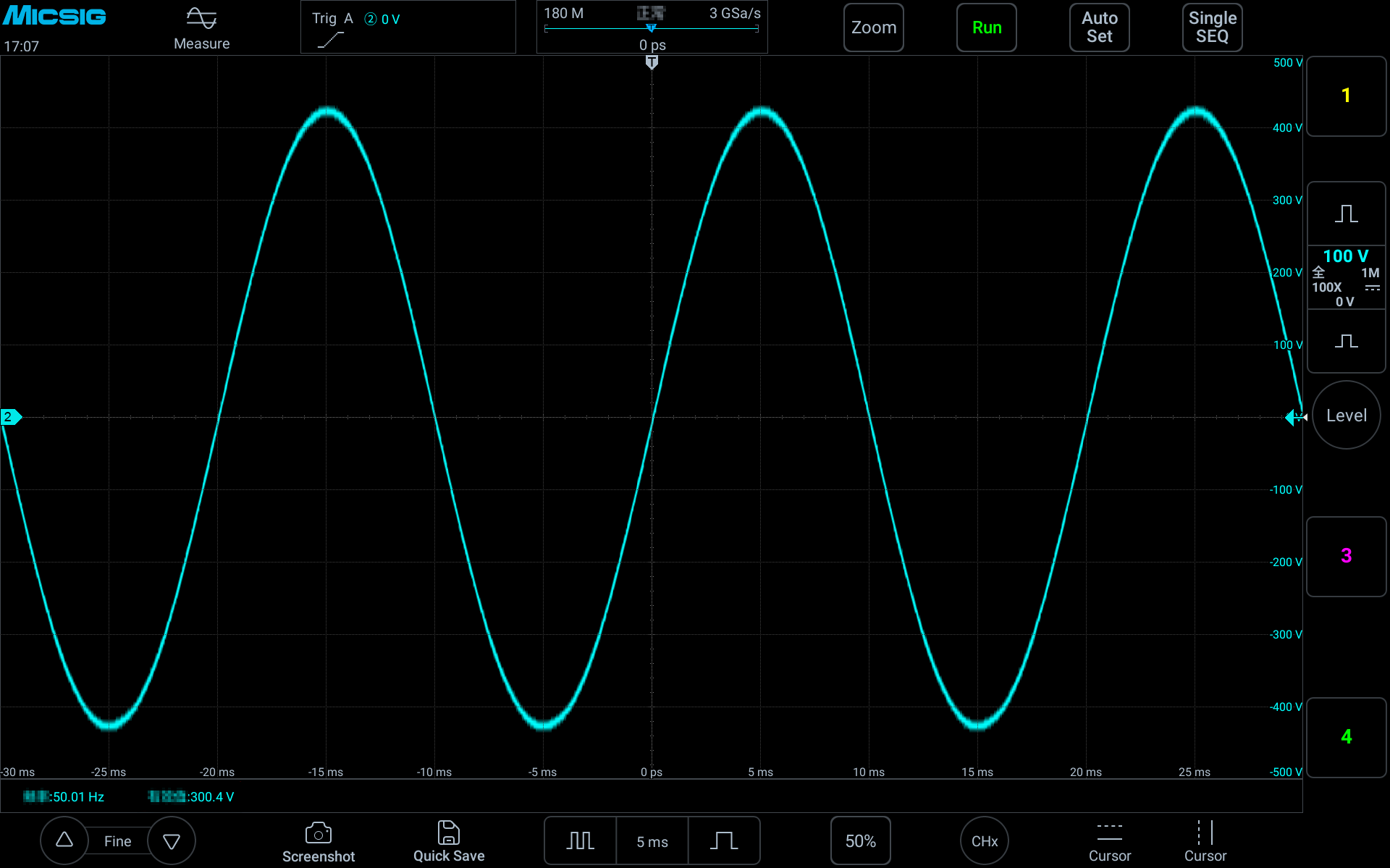

(The figure on the left shows the measurement of 300Arms high-current signals using the CP3008).

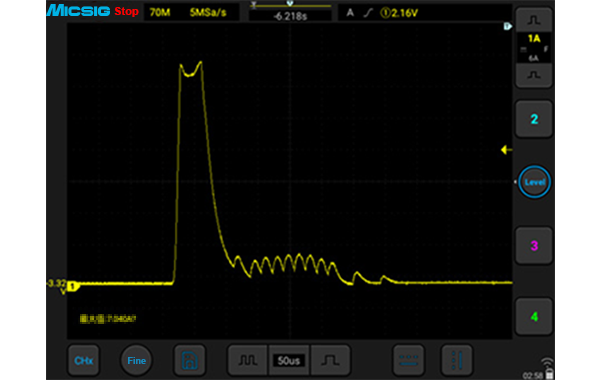

Observe Surge Current
Accurately capture the surge current waveform when the power adapter starts (Measured with the CP503B).
Applications
● Electric vehicle transportation design
● Switching power supply design
● Experiment of electronic engineering
● Semiconductor devices design
● Avionics design
● Inverter/Transformer design
● Electronic ballast design
● Industrial Control / Consumer Electronics design
● Engine driven design
● Power electronics and electric drive experimental design

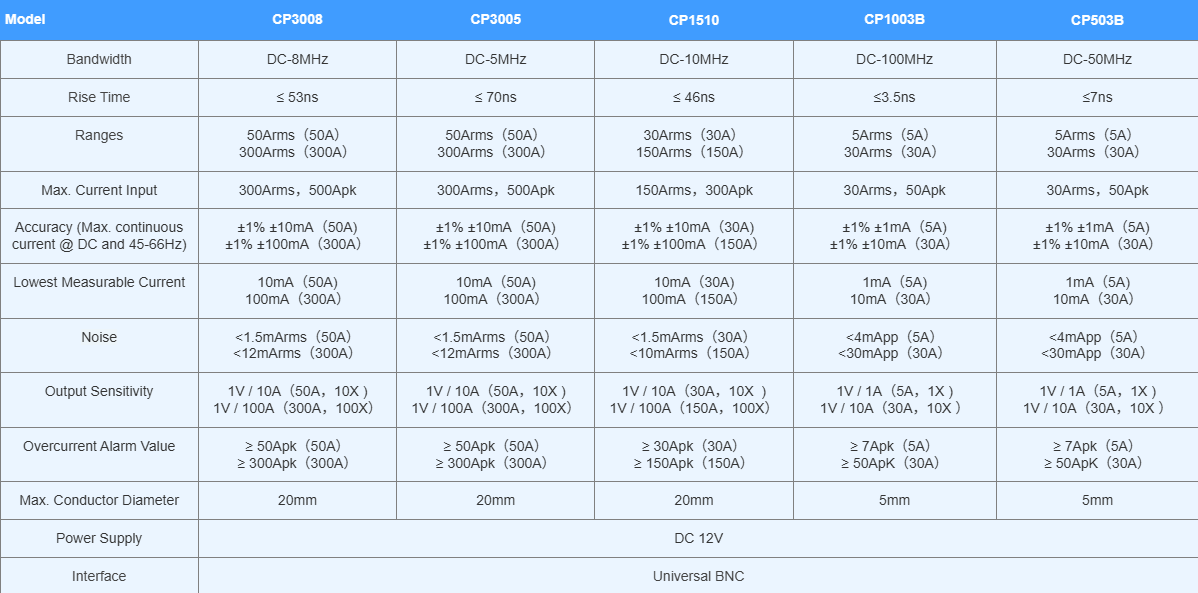

Key Specifications
