Automotive Oscilloscope ATO1000 Series
ATO1000 Series
Bandwidth：100MHz
Sampling Rate：1GSa/s
Memory Depth：28Mpts
Analog Channels：4
Sampling Rate：1GSa/s
Memory Depth：28Mpts
Analog Channels：4
Quantity

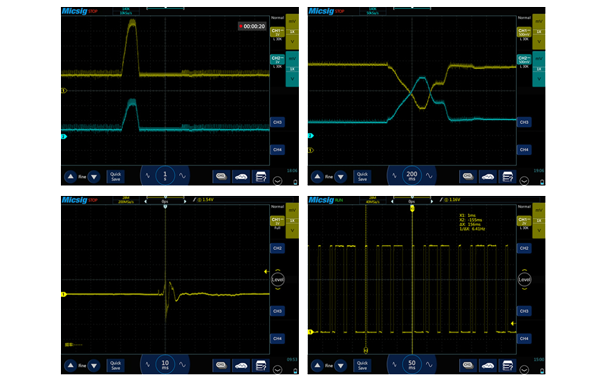

Various Actuator Tests
Carbon Canister Solenoid Value, Diesel Glow Plugs, EGR Solenoid Value, Fuel Plum, ldle Speed Control Value (IAC), Injector (Petrol), Injector(Diesel), Pressure Regulator, Quantity Control Value, Throttle Servomotor, Variable-speed Cooling Fan, Variable Value Timing

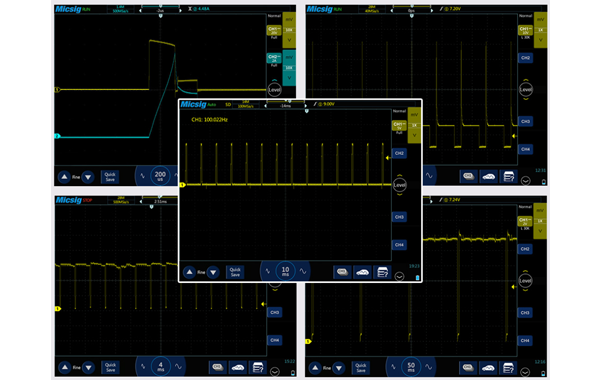

Various Sensor Tests
ABS, Accelerator Pedal, Air Flow Meter, Camshaft, Coolant Temperature, Crankshaft, Distributor, Fuel Pressure, Knock, Lambda, MAP, Road Speed, Throttle Position

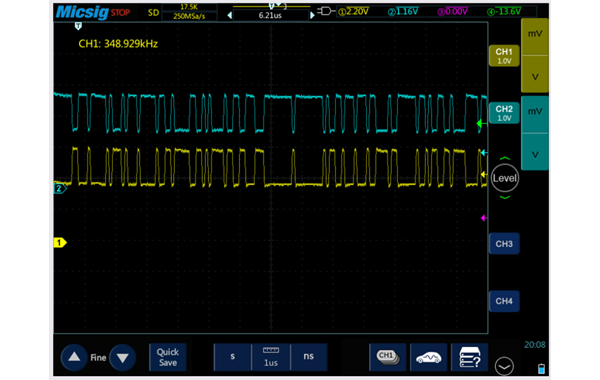

Networks
CAN, LIN, Flexray, K-line

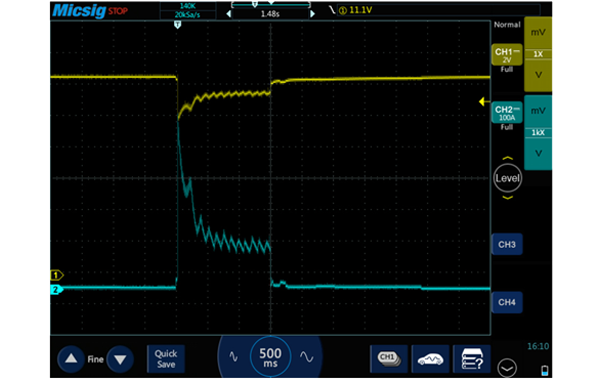

Charging / Start Circuits
12V Charging, 24V Charging, Alternator AC Ripple, Ford smart Alternator, 12V Start, 24V Start, Cranking Current

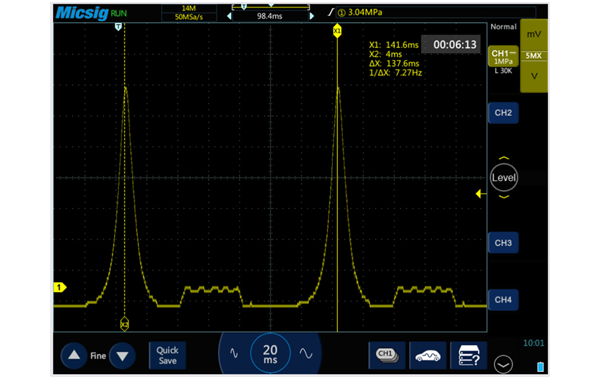

Pressure Test
Intake Manifold, Exhaust Tailpipe, In-Cylinder, In-Crankcase

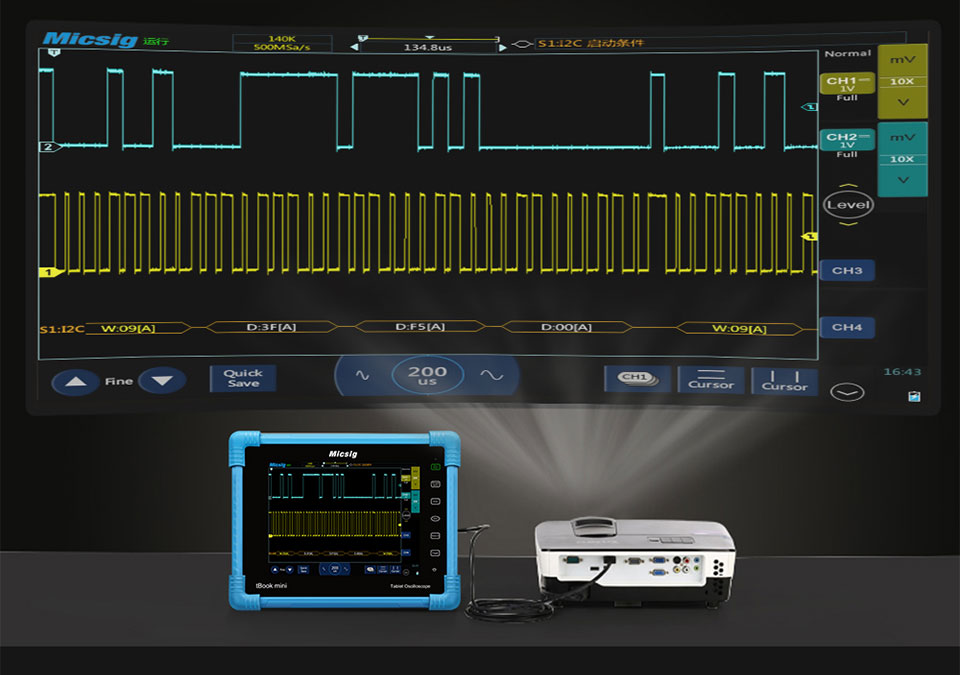

Remote Control
Support PC, Smart phone App (Android & iOS) remote control and HDMI connection for traning or public presentation.
Love from Worldwide Customers

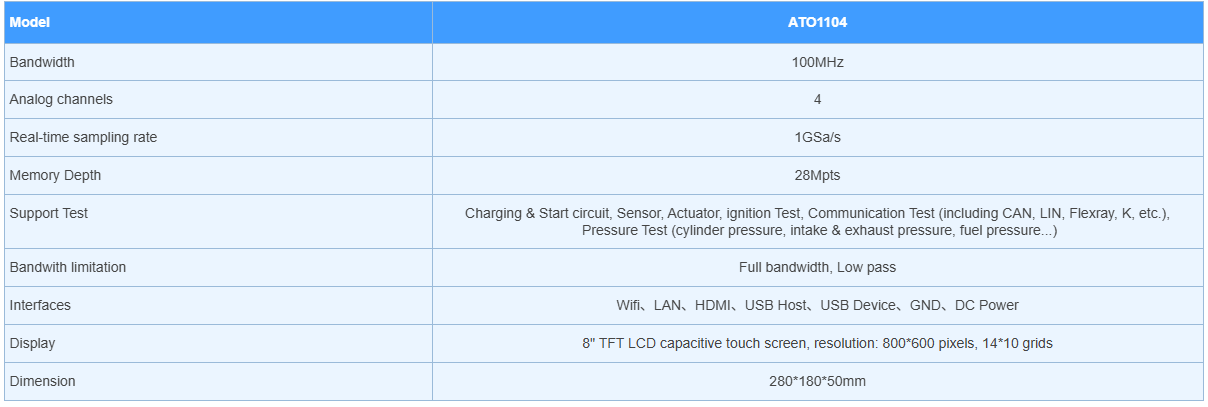

Key Specifications
