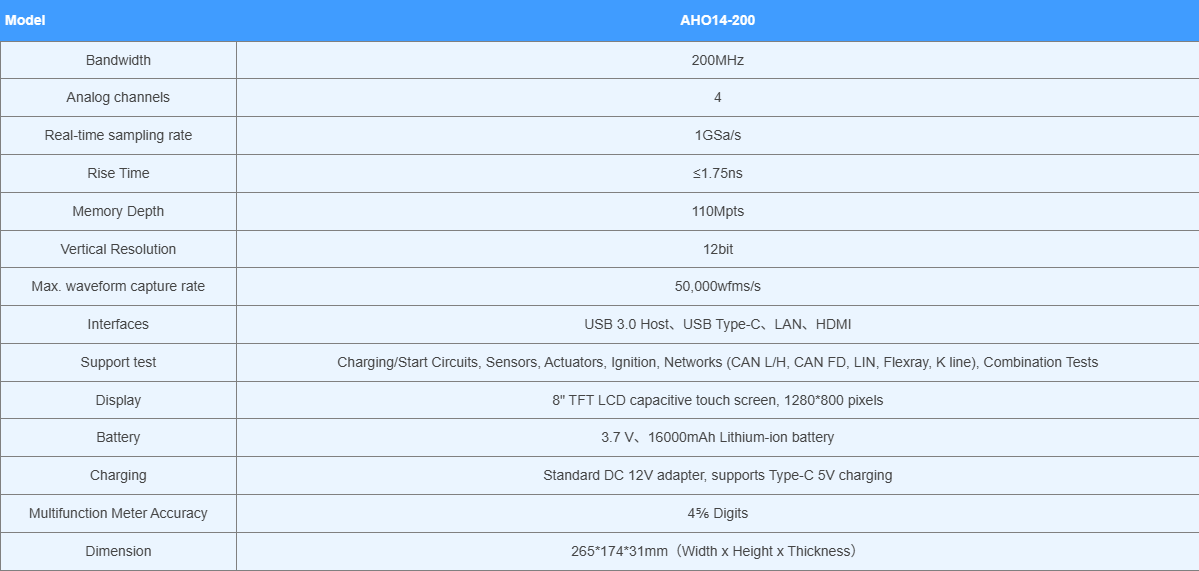

Sampling Rate：1GSa/s
Memory Depth：110Mpts
Analog Channels：4
Display：8 inches, 1280*800
Battery：3.7V 16000mAh
Micsig AHO1 Series is a professional high resolution
automotive oscilloscope designed for vehicle
diagnostics. It features a 12 bit ADC, 200 MHz
bandwidth, 4 analog channels, a real time sampling
rate of 1 GSa/s, and a memory depth of 110 Mpts.
Its ultra slim 3.1 cm portable design, built in high
capacity Li ion battery, and USB Type C charging make
it ideal for mobile and outdoor repair applications.
With an innovative general / automotive dual-
software architecture and dedicated test modes for
engines, sensors, and EV systems, it supports both
ICE and new energy vehicle diagnostics, helping
technicians troubleshoot faster and improve service efficiency.
Automotive/General Oscilloscope Function
With dedicated automotive and general-purpose oscilloscope software, it meets both professional vehicle diagnostic and general electronic measurement.
Integrated Multimeter
The AHO1 series oscilloscope innovatively incorporates a 4⅚-digit multimeter function, supporting a variety of measurements including voltage, current, resistance, continuity testing, diode testing, and capacitance measurement. There's no need to carry an additional multimeter, as it can meet a diverse range of testing requirements. Furthermore, the system supports simultaneous operation of the oscilloscope and multimeter with seamless switching, greatly enhancing on-site work efficiency and convenience.
Ultra-thin 3.1cm Body
AHO1 series has a body thickness of only 3.1cm, which is very compact and small, easily fitting into your backpack for efficient testing anytime, anywhere.
Built-in Battery for Ultimate Portability
Despite its ultra-thin design, the AHO1 series features a soft rubber protective casing that not only offers a comfortable grip but also excellent protective capabilities. Equipped with a 16000mAh high-capacity, long-life lithium-ion battery, it can withstand over 1000 charge-discharge cycles. Additionally, it supports charging via power banks, completely eliminating worries about battery life and making testing work more worry-free.
Multiple Remote Control Methods
Supports SCPI (Standard Commands for Programmable Instruments)
Compatible with mobile apps and PC-based remote control
Supports HDMI direct connection to displays without requiring any installation
12-Bit Vertical Resolution
The AHO1 series utilizes a 12-bit high-resolution ADC, offering up to 4096 quantization levels, which is 16 times that of a traditional 8-bit ADC. This allows users to observe waveform details more completely and clearly.
User-Friendly UI for Quick Start
Three Operation Modes: Fully Touchscreen, Physical Buttons and Knobs, and Hybrid Operation; Equipped with the SigTest UI, a Specialized Instrument System Evolved from Thousands of Engineer User Suggestions, All Operations Can Be Completed Swiftly, Simplifying Complex Tasks.
Deep Storage, Standard Segmented Storage
Standard segmented storage divides limited storage space into multiple small segments, gathering multiple trigger events within a single storage space. With convenient analysis and viewing functions, it allows for both integrated and individual display, making analysis and positioning more accurate and efficient, turning"finding a needle in a haystack"into a possibility.
Professional Accessories: Twin Package Options
The automotive oscilloscope comes standard with a variety of automotive repair-specific accessories, such as probes and alligator clips. These professional-grade tools make measurements more convenient and efficient.
Master Kit includes a professional carrying case, while Standard Kit features essential core accessories - meeting diverse diagnostic needs.
