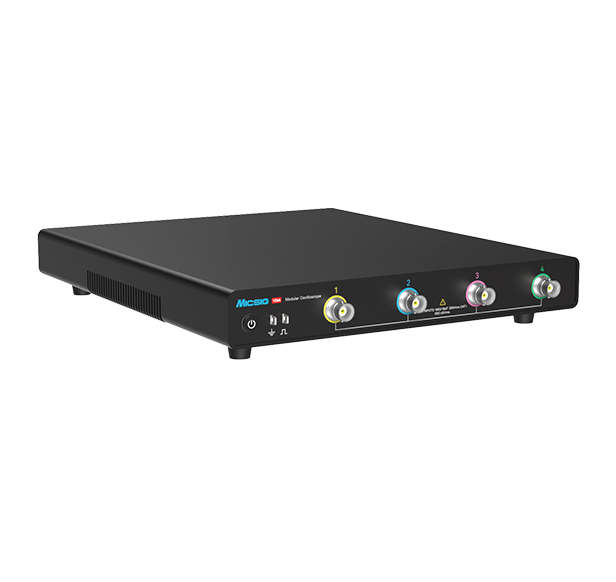

Micsig MO3 series high-resolution modular oscilloscope is only 3 cm high, making it the ultimate space-saving solution for desktops and test racks. The MO3 series features a 12-bit precision ADC, offering 500 MHz analog bandwidth, 3 GSa/s real-time sampling rate, 360 Mpts, and 4 analog channels; Supports HDMI direct connection for seamless access to large screens, with no software installation required. Users can control the oscilloscope using a mouse for simple and intuitive operation. Supports oscilloscope cascading with up to 16 channels, effectively reducing the cost of using multi-channel oscilloscopes. Supports PC-based oscilloscope remote control, SCPI protocol, secondary development, and high-speed data streaming, making it the top choice for test system integration.

Flexible connection and remote control capability

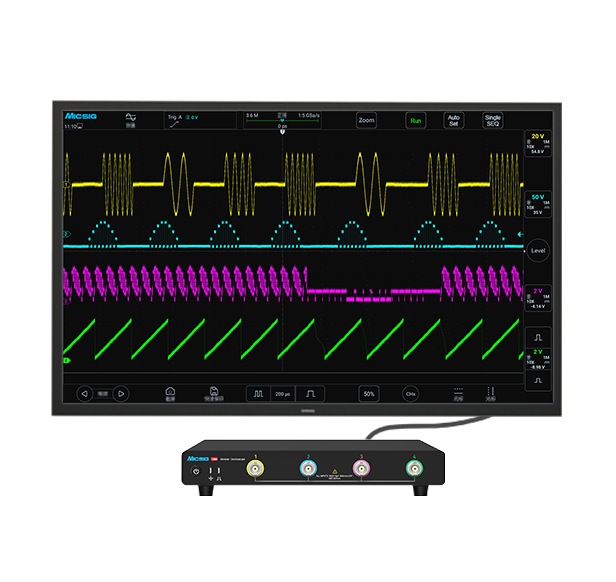

It can be directly used by connecting to any display device via the HDMI interface, and it can also be connected to a computer via the LAN port to achieve remote control and testing through the use of software and SCPI commands.

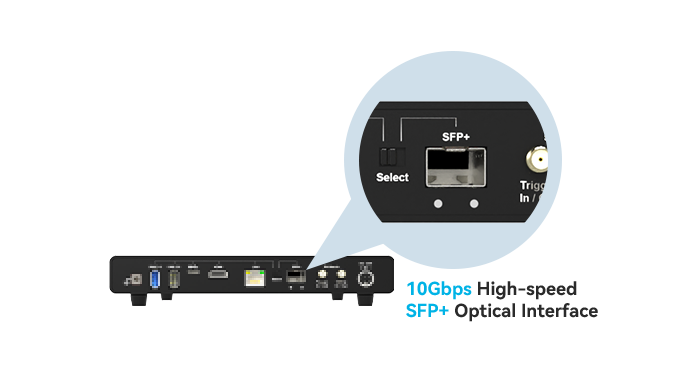

High-Speed Data Transfer

With a data transfer rate of up to 10Gbps, it offers unlimited possibilities for integrated secondary development. Even if the computer's data throughput rate is sufficient, the MO3 series modular oscilloscope can serve as a continuous high-speed data acquisition device.

Matrix-style Connection

It supports rack-mounted installation, or the synchronization of N units in a matrix to achieve a greater number of analog channels (4*N).

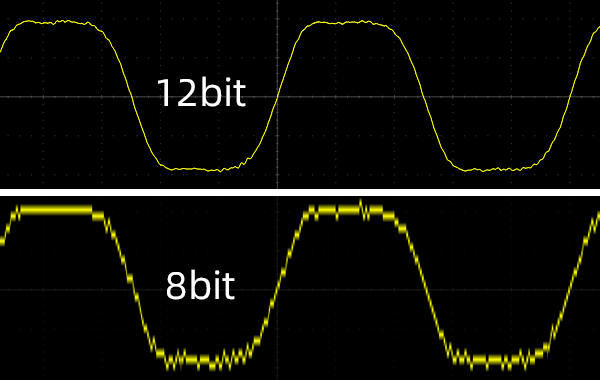

12-bit Vertical Resolution

The MO3 series utilizes a 12-bit high-resolution ADC, offering a quantization level of up to 4096, which is 16 times that of a traditional 8-bit ADC. This helps users to observe the details of waveforms more completely and clearly.

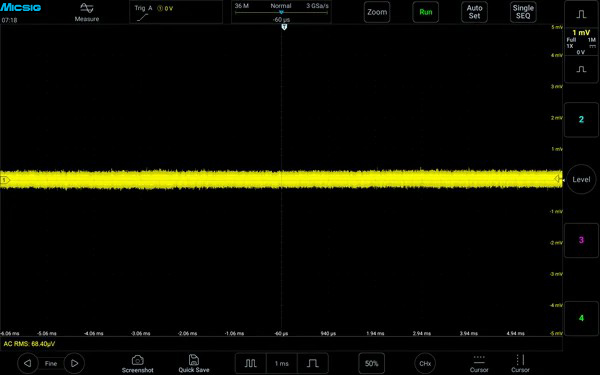

Extremely Low Baseline Noise

The MO3 series maintains a baseline noise of less than 80μVrms across the full bandwidth of 500MHz, allowing you to accurately capture subtle yet important signals during circuit debugging and signal analysis processes.

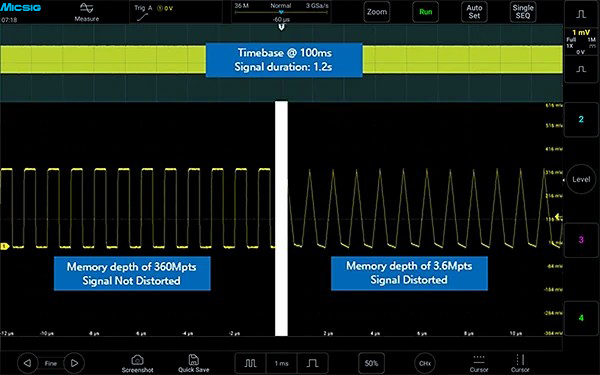

Deep Memory with Standard Segmented Storage

With a 360Mpts memory depth, even when two channels are active simultaneously, there is no reduction in storage capacity, ensuring excellent signal fidelity at large time bases.

Standard segmented storage divides the limited memory space into multiple smaller segments, consolidating multiple trigger events into a single storage space. Coupled with convenient analysis and viewing features, it allows for free combination display and individual display, making analysis and positioning more accurate and efficient, turning the search for a"needle in a haystack"into a possibility.

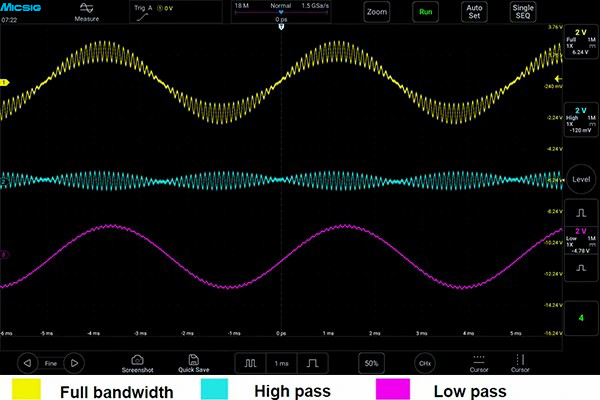

Hardware Digital Filtering

Hardware digital filtering can selectively pass or block signal components within specific frequency ranges, which is very useful for analyzing specific frequency bands of a signal or observing changes in specific frequency components.
