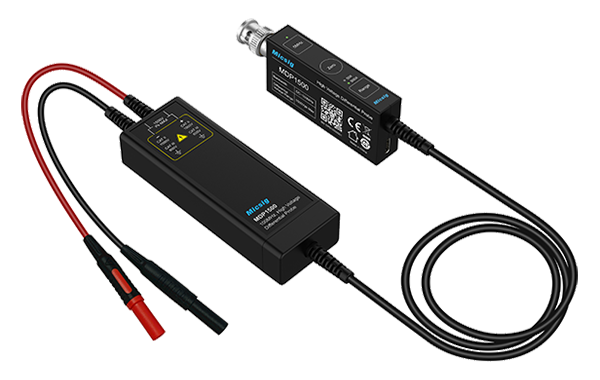

series differential probe has very low noise floor, excellent
high-voltage amplitude-frequency characteristics and industry-leading
common mode rejection capability, allow users to test high-frequency
and high-voltage signals with ease.
Bandwidth: 100MHz / 150MHz / 200MHz / 300MHz / 400MHz / 500MHz
Max. Voltage: 700Vpk / 1500Vpk / 3000Vpk / 7000Vpk
Excellent Bandwidth Flatness

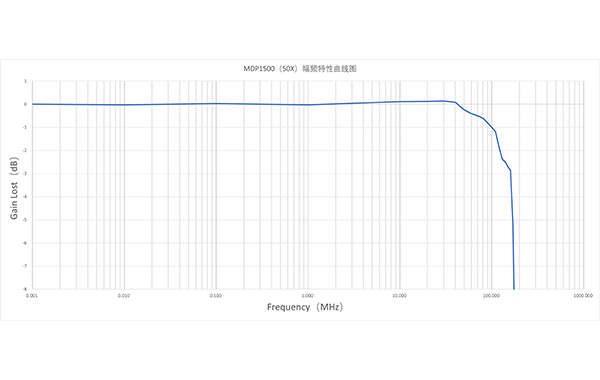

The MDP series probe has excellent bandwidth flatness, amplitude fluctuation less than 0.5dB within its half bandwidth range, even in high frequency bands can also maintain high accuracy.
High Accuracy, High CMRR
High input impedance and low input capacitance, minimized load effect, greatly improved the accuracy of the differential signal. High common mode rejection capability, able to meet floating measurements of large common mode voltage at high frequencies.

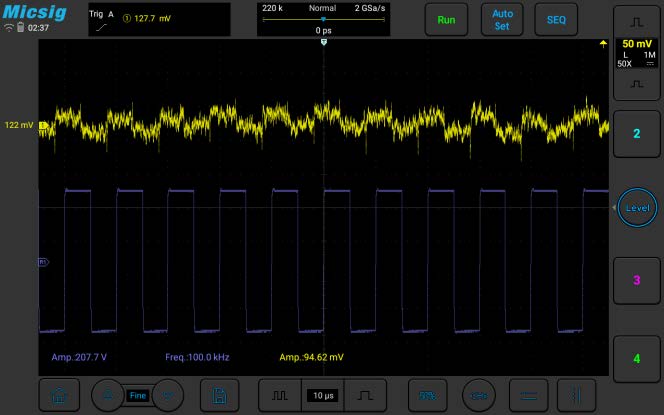

CH1: @ 100KHz, 207.7V, output common mode signal amplitude 94.62mV, CMRR >-60dB
Low Noise

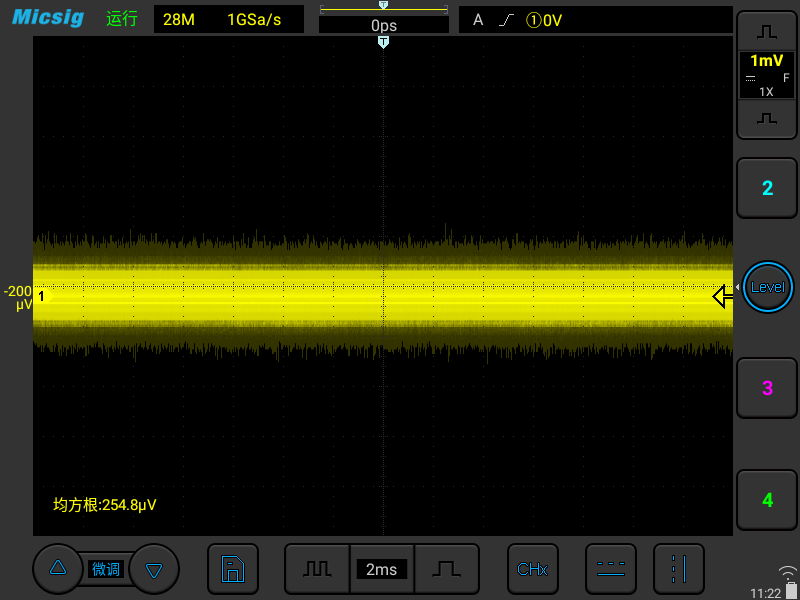

MDP3000 test results: under 1000X, noise at full bandwidth is 254.8μVrms.
5MHz Bandwidth Limit
(only available on 100MHz ~ 200MHz versions，except DP7000)
When measuring FET switching frequency in most switching power supplies, MDP probe effectively eliminates high-frequency noise.
Quick Zero
Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.
Dual Range Selection
Improves signal-to-noise ratio, meet more test requirements.
BNC Interface
Standard BNC interface, work with any oscilloscope.
Overvoltage Alarm
LED flashes, buzzer"beeps"rapidly, indicating an over-range alert.

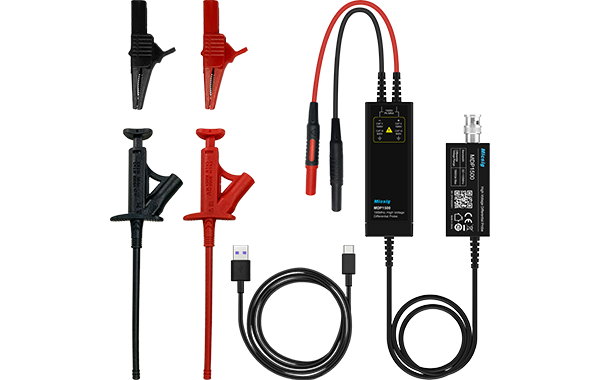

Compact & Exquisite

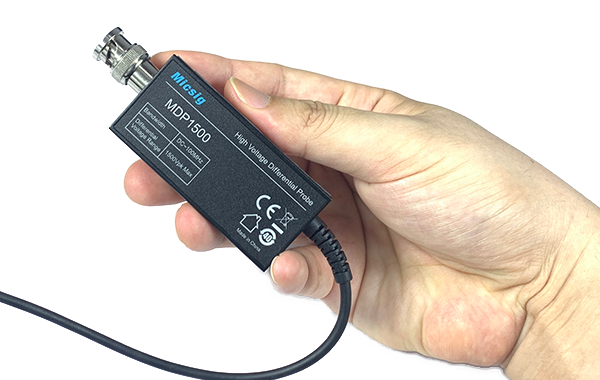

Much smaller than traditional differential probes.
Applications
● Floating measurements
● High voltage isolation measurements
● Switching power supply design
● Power converter design
● Inverter, UPS power supply
● Welding, electroplating power supply
● Electronic ballast design
● Motor drive design
● Induction heating, induction cooker
● CRT display design
● Low-voltage electrical appliances
● Electronic power and electric drive experiments

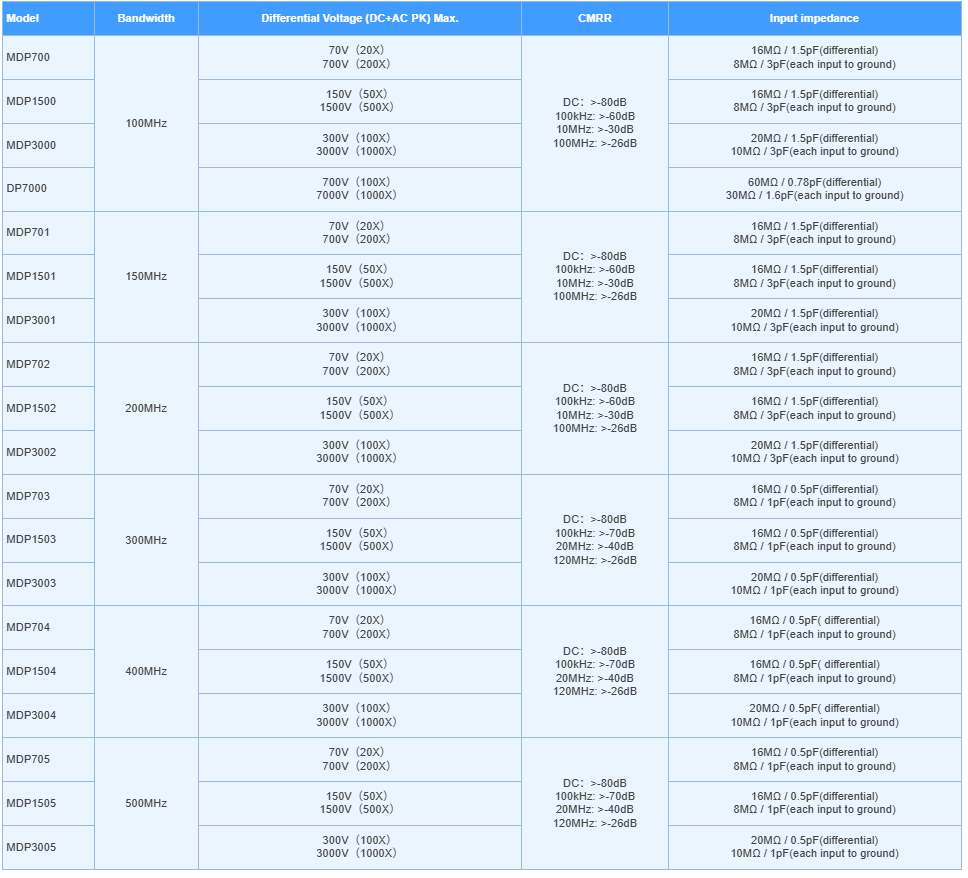

Key Specifications
