As automotive car step into a new era of high electrification and intelligence, both traditional fuel vehicles and new energy vehicles rely on the coordinated operation of ECUs, complex sensor clusters and high-power actuators. This gives rise to diversified and transient electrical signals. Traditional automotive diagnostic devices such as diagnostic scanners and ordinary multimeters can only determine the general direction of faults qualitatively, yet fail to accurately capture the voltage variation details and dynamic response of microsecond-level signals.
Our 8-bit automotive oscilloscopes are popular in the market in the past several years. Today Micsig has officially launched the AHO1 Series high-resolution automotive oscilloscope to meet widespread customer demands. Powered by a 12-bit high-precision ADC hardware core, it adopts an innovative dual software architecture for dedicated automotive use and general oscilloscope applications. Combining ultra-thin portability with professional diagnostic accessories, it enables traceable, efficient and accurate troubleshooting for every automotive fault diagnosis task.
I. 12-bit high Resolution, True Signal Details
In troubleshooting automotive electronic control system faults, the real challenge is often not "failure to measure", but "failure to see clearly". The AHO1 Series adopts a 12-bit high-resolution analog-to-digital converter with up to 4096 quantization levels — 16 times that of traditional 8-bit oscilloscopes.

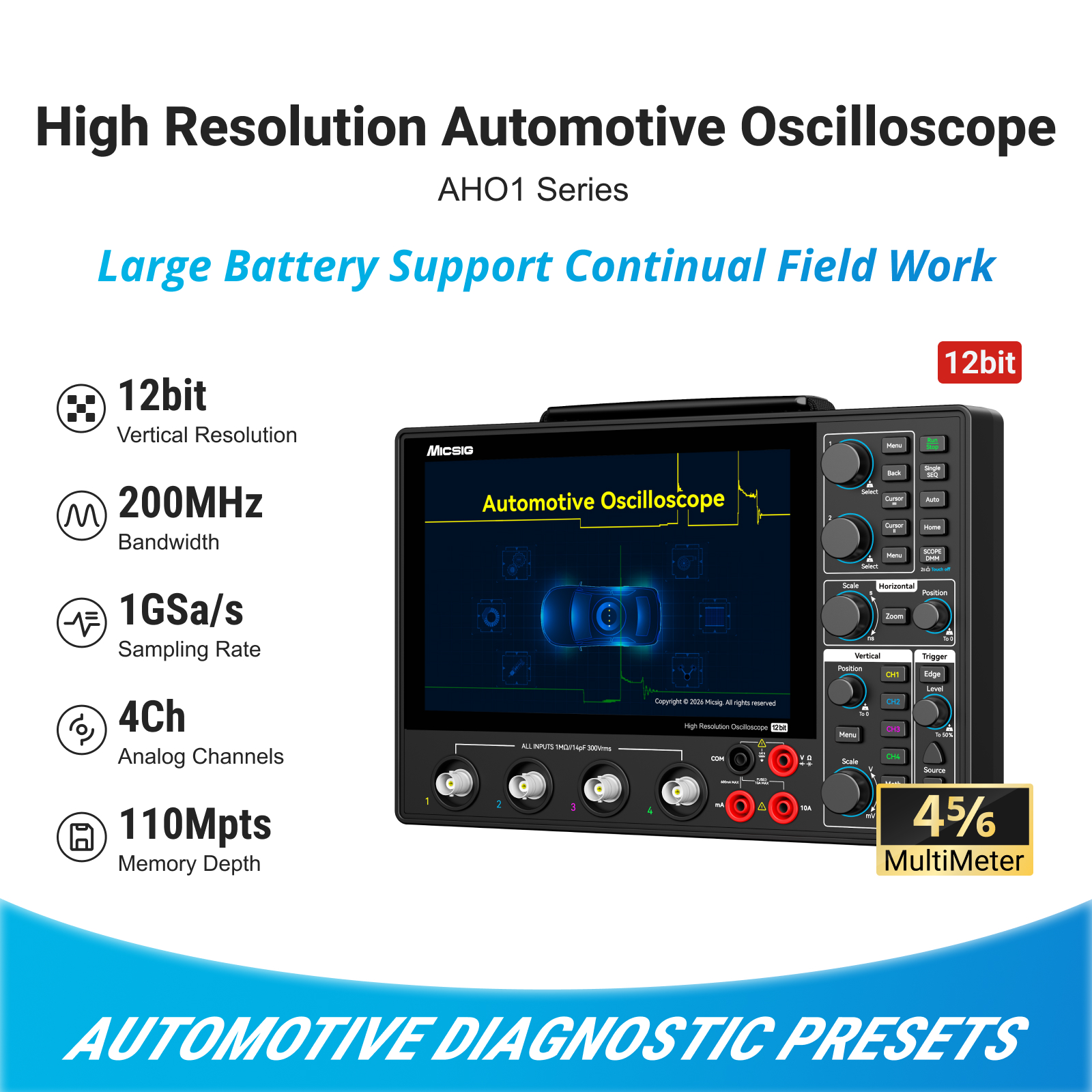

Core Parameter Highlights
- 12-bit vertical resolution for precise capture of millivolt-level signal fluctuations
- 200MHz bandwidth, 1GSa/s sampling rate, with built-in automotive diagnostic software
- 110Mpts memory depth for complete recording of long-time sequence waveform details
- One-click multi-channel waveform saving for effortless comparative analysis
- 8-inch high-definition touchscreen, Android operating system and user-friendly UI design
-

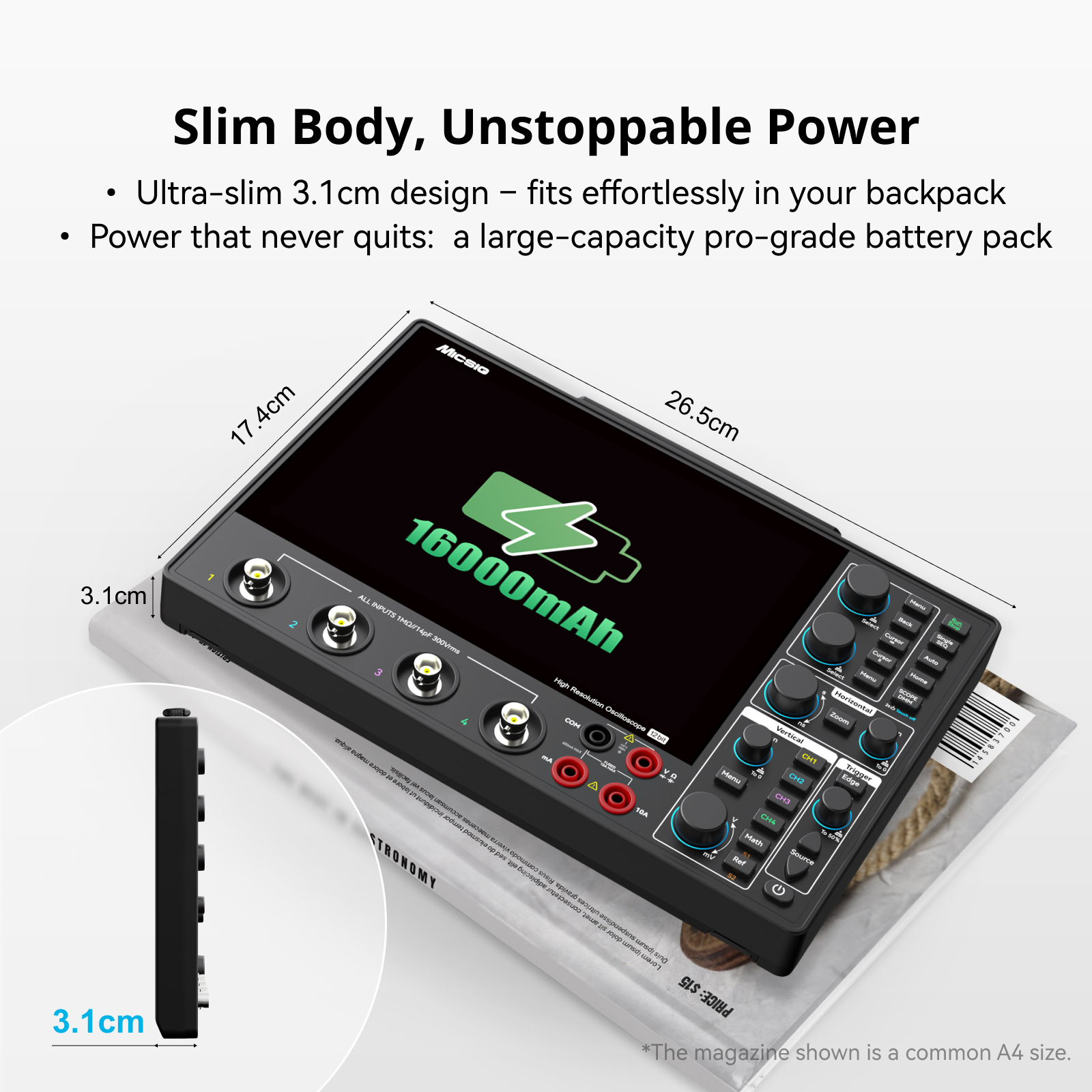

II. 3.1cm Ultra-Thin Compact Body, Large-Capacity Battery for On-Vehicle Diagnosis
The AHO1 Series features an ultra-slim body of only 3.1cm with lightweight design for easy portability. The soft rubber protective design delivers a comfortable grip and drop resistance. Built-in large-capacity lithium-ion battery eliminates the need for external power supply, allowing engineers to perform real-time measurements while moving around the vehicle.

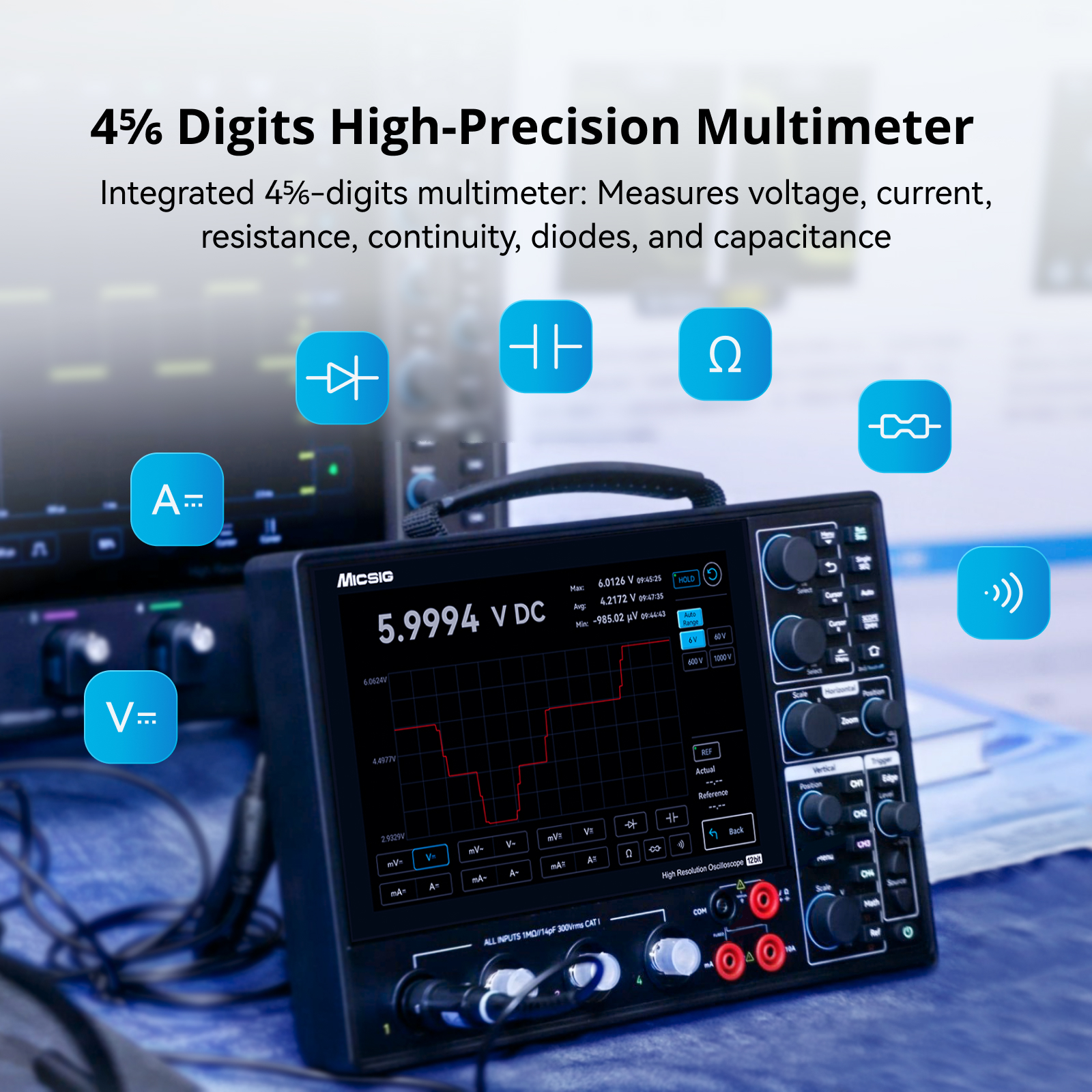

III. Built-in 4⅚-Digit Multimeter Reduces Field Instrument Burden
A multimeter is an essential testing tool in automotive diagnosis scenarios. The AHO1 Series integrates a 4⅚-digit high-precision multimeter, supporting voltage, current, resistance, capacitance, diode and continuity tests. The oscilloscope and multimeter functions can run simultaneously and switch seamlessly, greatly reducing the burden of carrying multiple instruments for field work.

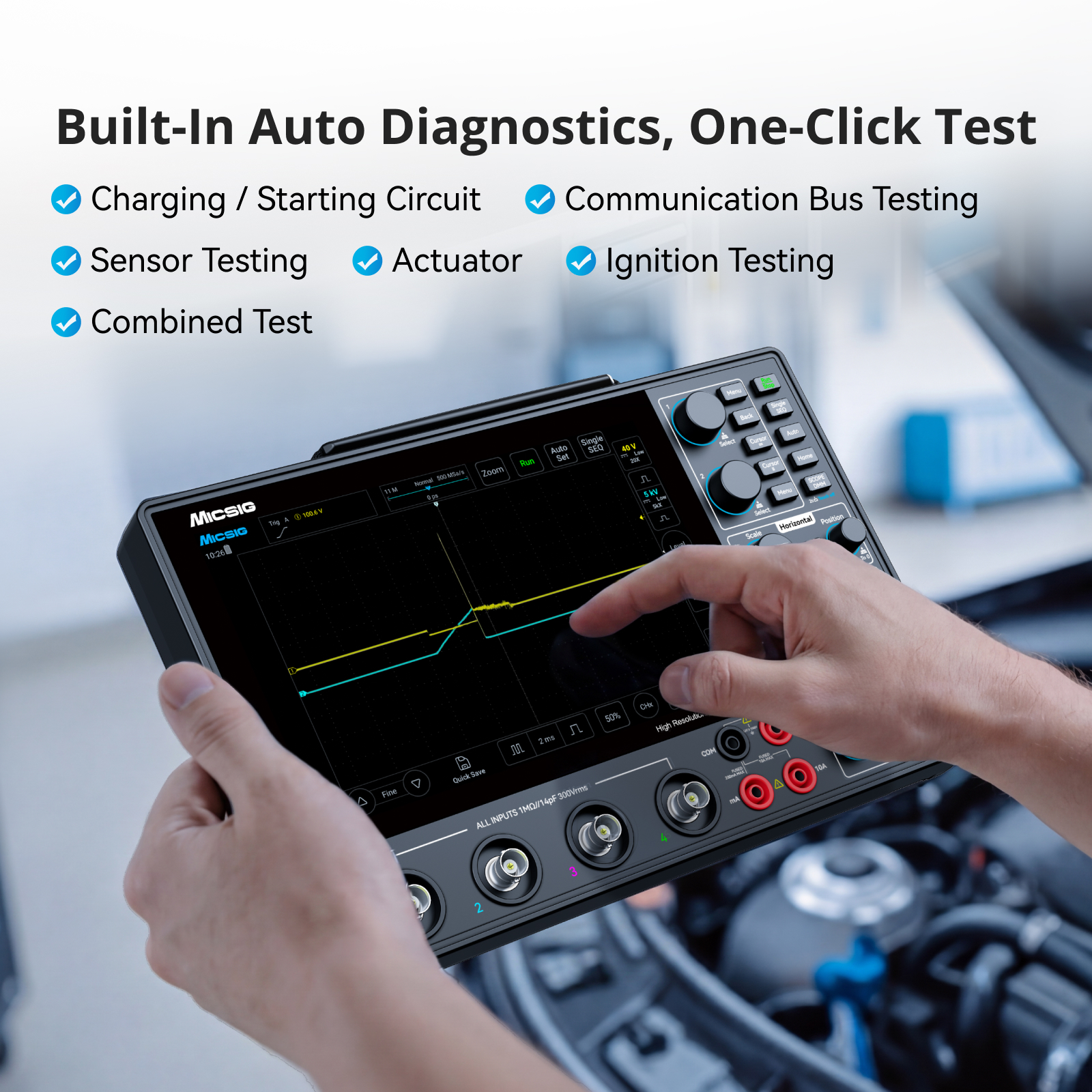

IV. Preset Automotive Diagnostic Functions, One-Click Testing
AHO1 Series comes with prest automotive diagnostic functions to realize true one-click testing. No complicated parameter setup is required to start detection quickly.
- Covers charging/starting circuits, as well as various sensor and actuator tests
- Supports primary/secondary ignition circuit analysis and vehicle communication bus testing
- Enables triggering and decoding of multiple serial bus protocols
- Compatible with all mainstream vehicle models on the market; novice technicians can get started quickly and handle complex electronic control system diagnosis of modern vehicles with ease

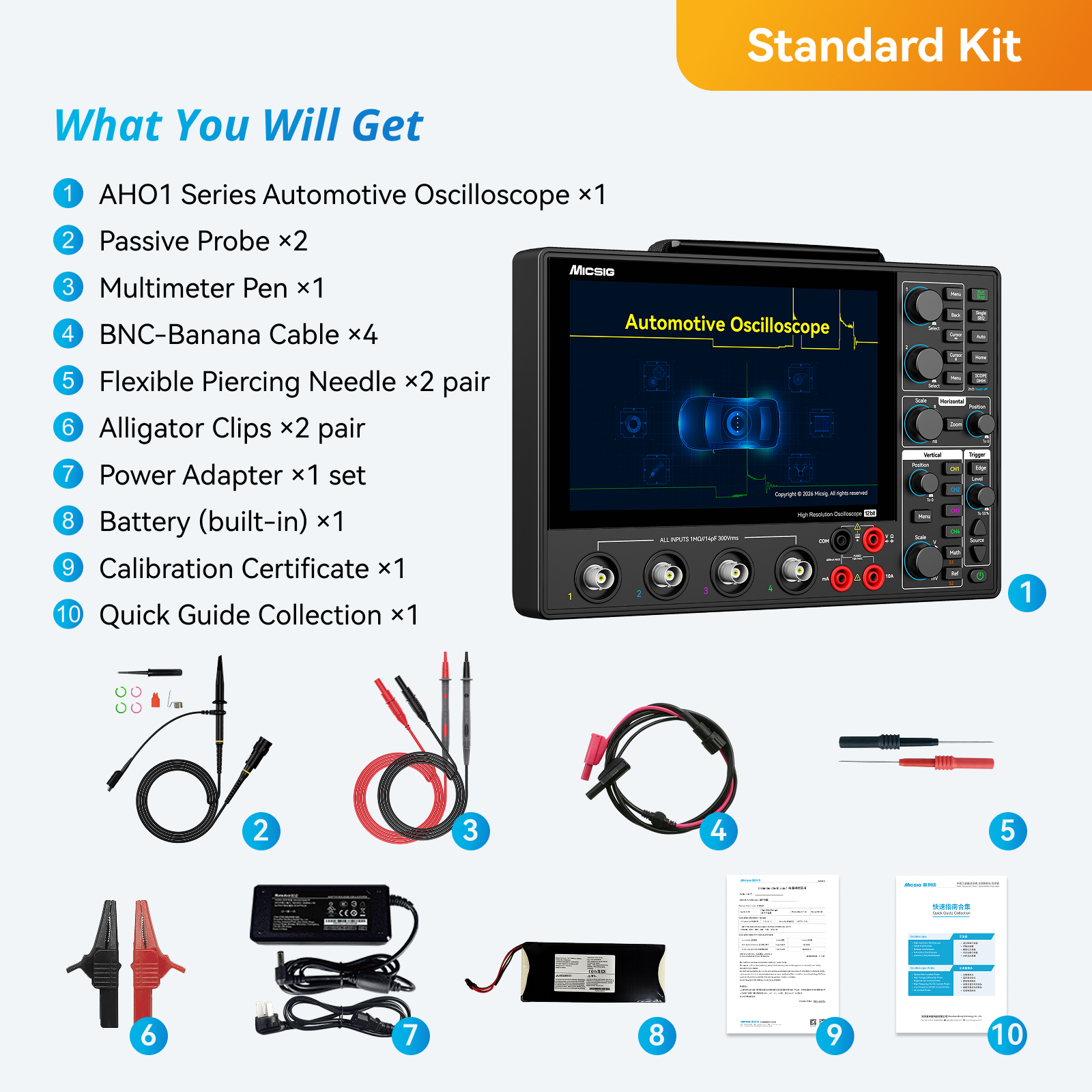

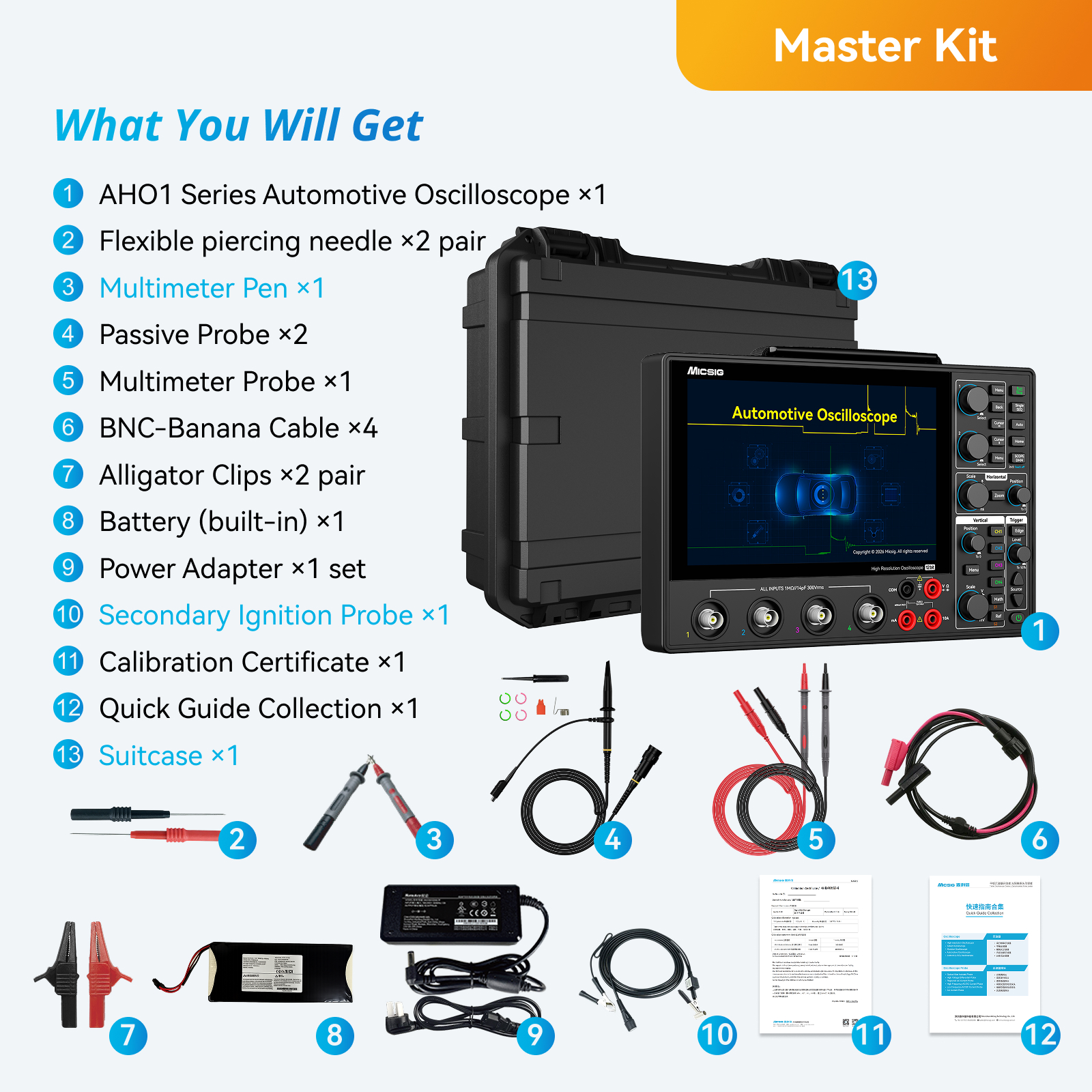

V. Standard & Master Package Options with Complete Professional Auto Repair Accessories
Micsig offers two packages for the AHO1 Series: Standard Package and Master Package, to meet diagnostic needs at different levels. Ready to use right out of the box with neat accessory storage.
Conclusion
Delivering laboratory-grade measurement accuracy and scenario-tailored functional design for auto repair, the Micsig AHO1 Series Automotive Oscilloscope boosts waveform capture precision with 12-bit high resolution, adapts to mobile operation via its slim body and built-in battery, and simplifies operation with integrated multimeter and preset diagnostic functions. It serves as a professional diagnostic tool balancing outstanding performance and high efficiency for automotive maintenance technicians.
