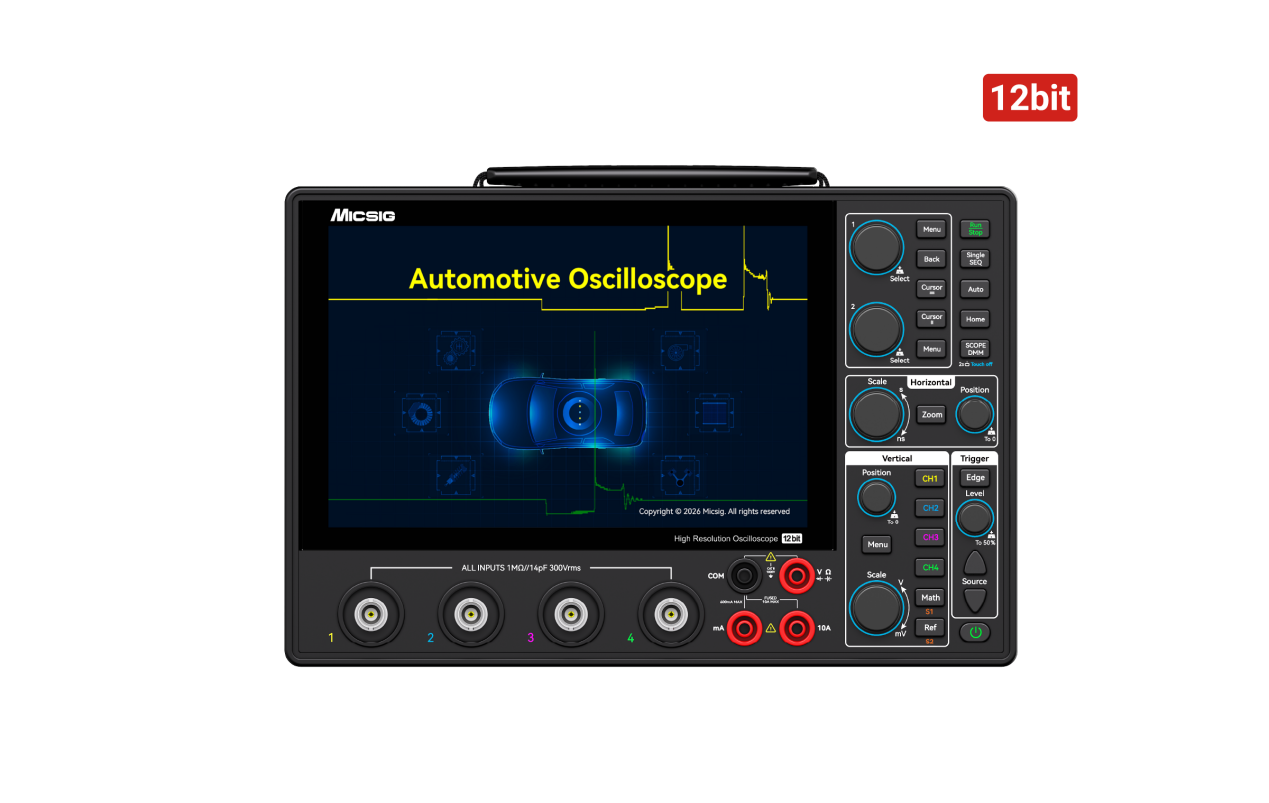

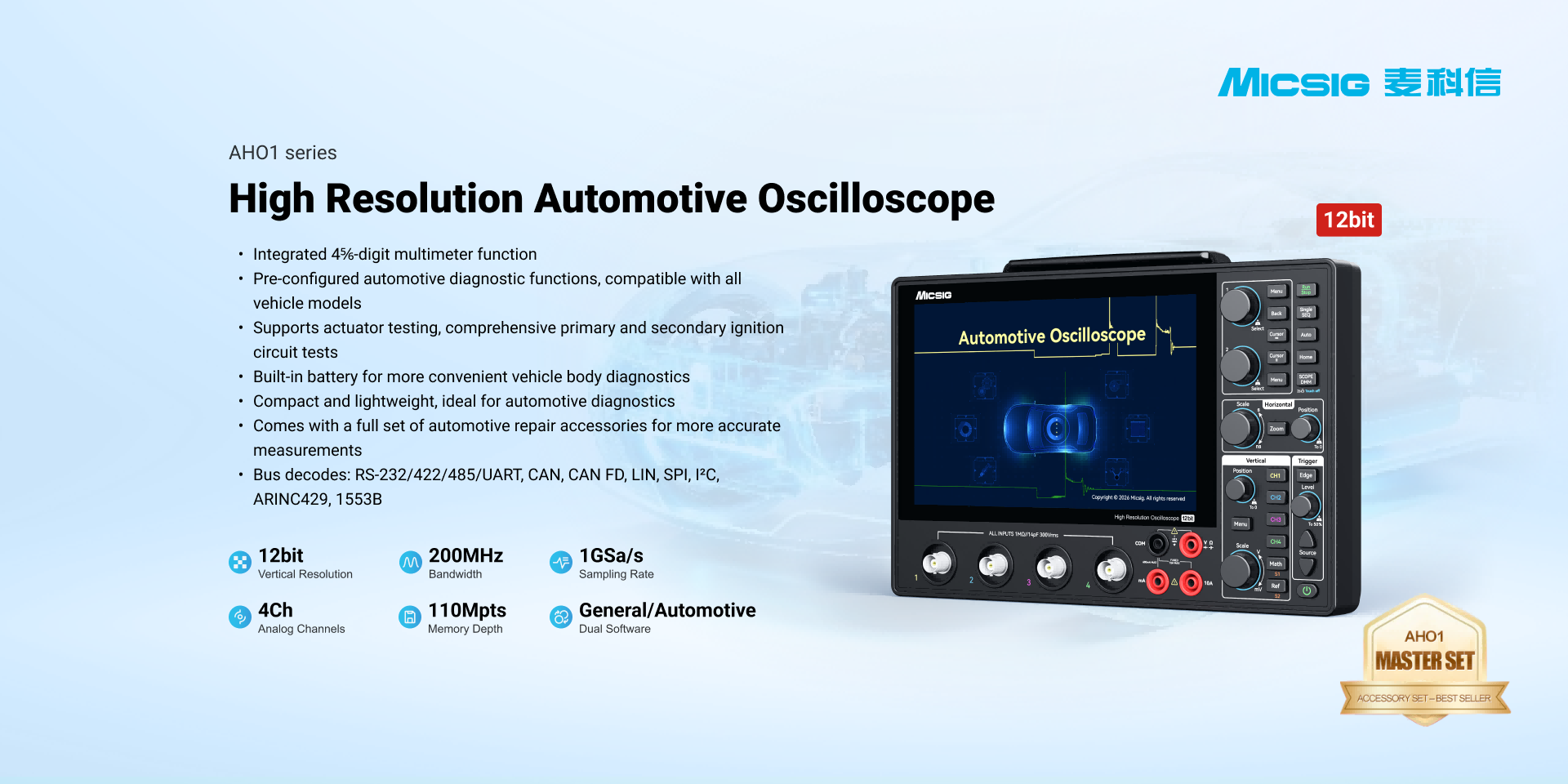

One Article to Understand the Micsig AHO1 Series High-Resolution Automotive Oscilloscope
The Micsig AHO1 Series is a high-resolution automotive oscilloscope purpose-built for automotive electronic control system diagnostics. Featuring 200MHz bandwidth, 4 channels, 1GSa/s real-time sampling rate, and a 12-bit vertical resolution as its core highlight, it can clearly capture millivolt-level signals. It integrates a 4⅚-digit multimeter, presets full-scene automotive diagnostic functions including charging/starting circuits, sensors, actuators, ignition circuits, and communication buses, and adopts a dual-software architecture combining automotive-specific and general-purpose oscilloscope modes. With an ultra-thin 3.1cm body and a large-capacity lithium battery, it is an ideal choice for maintenance, R&D, and teaching for both traditional fuel vehicles and new energy vehicles.
I. Key Specifications
- Bandwidth: 200MHz
- Rise Time: ≤1.75ns
- Analog Channels: 4
- Multimeter Accuracy: 4⅚-digit
- Interfaces: USB 3.0 Host, USB Type-C, LAN, HDMI, Trigger out
- Supported Tests: Charging circuit, starting circuit, sensors, actuators, ignition test, communication test (including CAN, CAN FD, LIN, Flexray, K-Line, etc.), combination test
- Display: 8-inch touch all-in-one screen, 1280×800 resolution
- Dimensions: 265×174×31mm (W×H×D)
II. Core Highlights

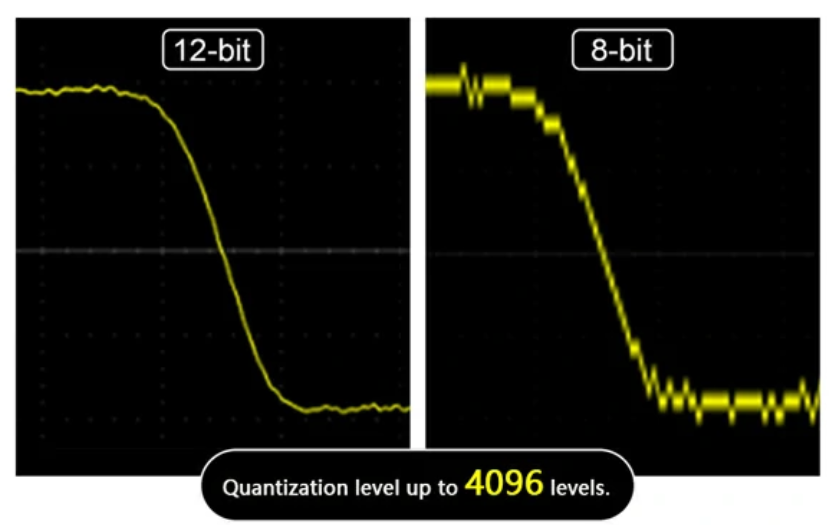

1. 12-bit High Resolution-Millivolt Signals at a Glance
Traditional automotive oscilloscopes mostly have 8-bit resolution (256-level quantization), often failing to clearly capture weak signals such as oxygen sensor fluctuations, injector current details, or CAN bus dominant/recessive voltage differences. The AHO1 Series uses a 12-bit ADC, raising quantization levels to 4096 -16 times that of traditional oscilloscopes. Combined with a low-noise front-end design, it accurately captures millivolt-level signal variations.

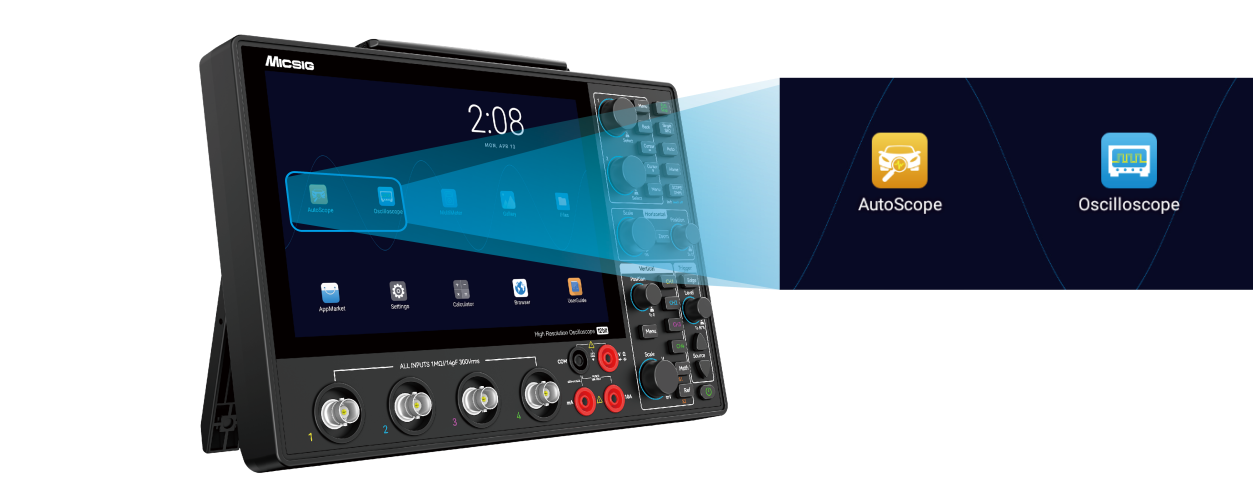

2. Automotive-specific+General-purpose Oscilloscope Dual-software Architecture
With dedicated automotive and general-purpose oscilloscope software, it meets both professional vehicle diagnostic and general electronic measurement.
3. Built-in 4⅚-digit Multimeter – Reducing On-site Instrument Load
The AHO1 Series innovatively integrates a 4⅚-digit high-precision multimeter into the oscilloscope, supporting AC/DC voltage, current, resistance, continuity, diode, and capacitance measurements. More practically, the oscilloscope and multimeter can run simultaneously and switch seamlessly – eliminating the need to repeatedly plug/unplug probes or swap instruments during diagnostics, greatly improving on-site efficiency.

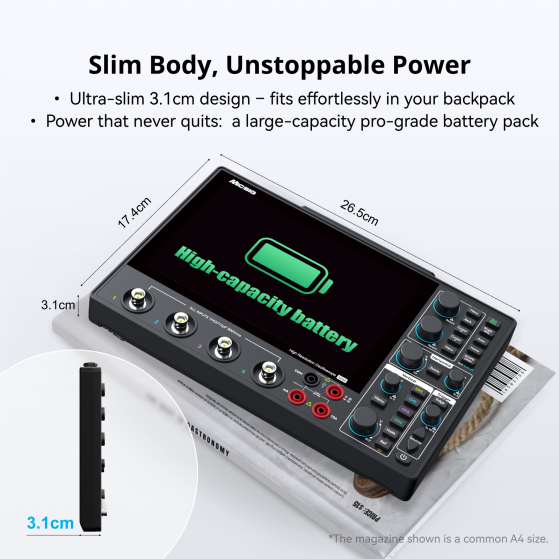

4. 3.1cm Ultra-thin Body + Large-capacity Lithium Battery-Untethered Mobile Diagnostics
With a body thickness of only 3.1cm, it fits easily into a tool case or laptop bag. The built-in large-capacity lithium battery supports charging via power banks, completely solving power supply issues for outdoor automotive repair. The soft rubber protective design offers drop and vibration resistance, adapting to workshops, roadsides, and other demanding environments.
5. 110Mpts Deep Memory + Segmented Memory – Elusive Faults Cannot Hide
The AHO1 Series is built for high-frequency automotive repair scenarios, with preset full-scene diagnostic functions. One click completes the test – no complex setup required. It covers charging/starting, sensors, actuators, ignition circuit analysis, and in-vehicle bus testing, supports triggering and decoding of multiple serial protocols, and is compatible with all mainstream vehicle models on the market. Novice technicians can get up to speed quickly and easily handle complex electronic control system diagnostics.
III. Typical Application Scenarios

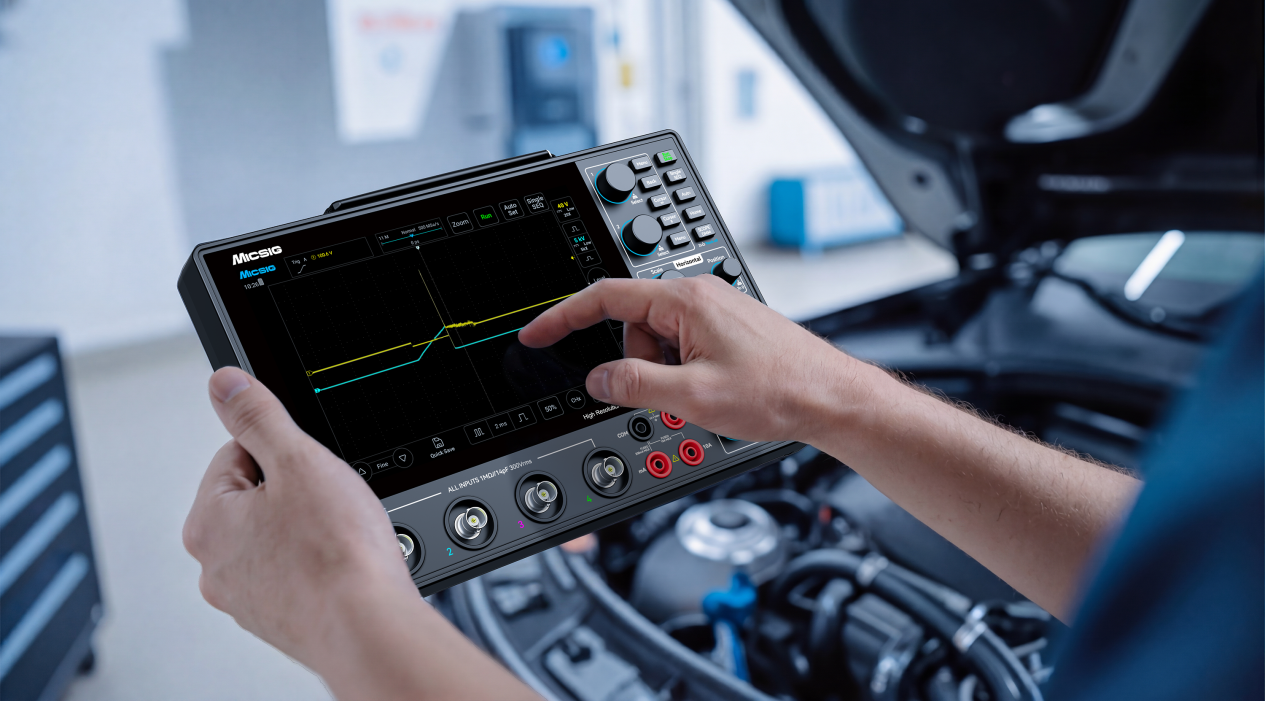

New Energy Vehicle Electronic Control Diagnostics
Accurately measure voltage and current waveforms of key components such as the motor controller, battery management system, and on-board charger. Supports CAN/CAN FD bus communication analysis, providing reliable data for high-voltage system fault diagnosis and efficiency optimization.
Traditional Fuel Vehicle Electronic Control Systems
Covers core modules including engine management system, transmission control unit, and ignition system. Supports dynamic waveform analysis of oxygen sensors, throttle position sensors, injectors, ignition coils, etc., enabling fast localization of electronic control system faults.
Sensor and Actuator Testing
Provides comprehensive sensor and actuator test modes, covering common sensors (ABS, crankshaft, camshaft, knock, oxygen sensor, etc.) and actuators (fuel pump, idle speed control valve, EGR solenoid valve, injector, etc.). One-click invocation, no complex setup.
In-vehicle Communication Bus Testing
Supports triggering and decoding of mainstream in-vehicle network protocols such as CAN, CAN FD, LIN, Flexray, and K-Line. Real-time monitoring of bus communication quality, quickly locating node faults, terminal resistor issues, and other communication problems.
Charging and Starting Circuit Analysis
Presets dedicated modes for 12V/24V charging test, starting current test, alternator AC ripple detection, etc., comprehensively evaluating the health of the vehicle’s power supply system.
Teaching, Training & Demonstration
Connect directly to a large screen or projector via HDMI to display waveform capture in real time. Combined with multi-channel waveform comparison and segmented memory, it is an ideal electronic control teaching tool for vocational schools and training institutions.
IV. Accessories & Selection

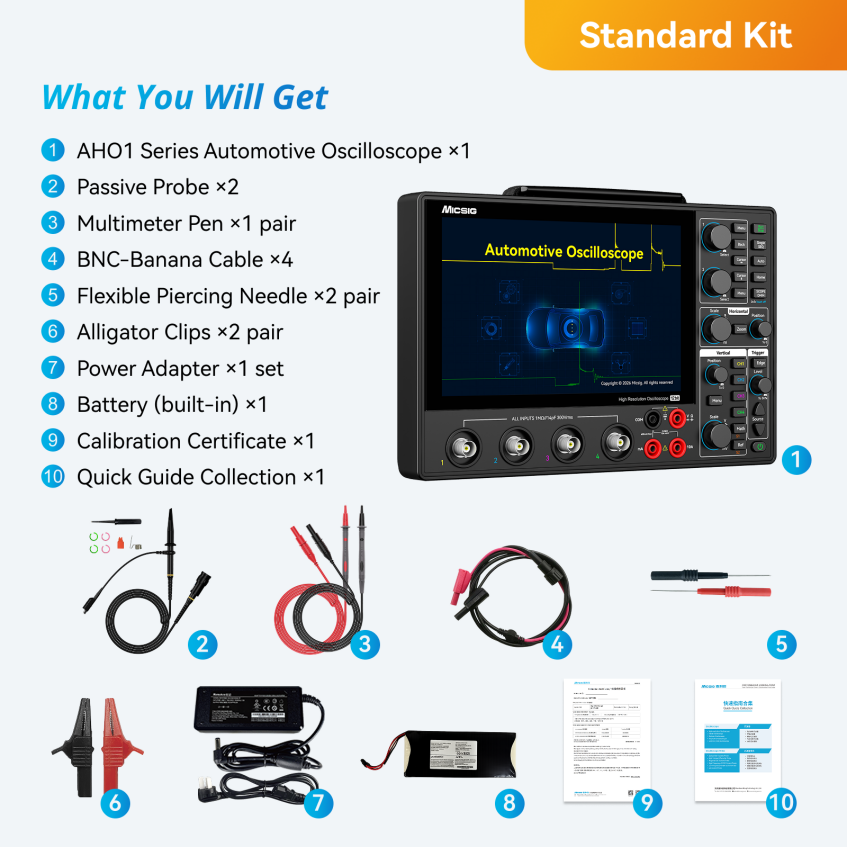

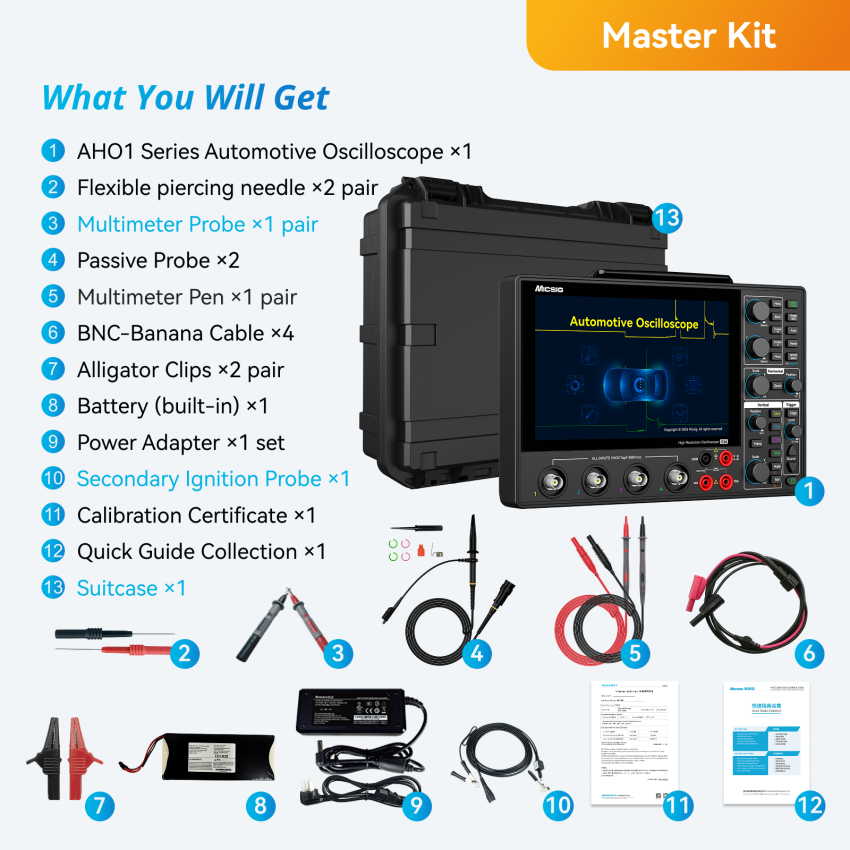

The AHO1 Series is available in two configurations: Pro Kit and Master Kit. Users can choose according to their diagnostic needs.
